film blow screw cylinder from China manufacturer - Zhoushan Shenglong Machinery Co.,Ltd.

Price:	100.0~10000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land,Air

Packing: Wooden case

Brand Name: Shenglong

Steel Hardness after hardening&tempering: HB280-320

Nitrided case depth: 0.45-0.7MM

Design: Good plastification and mix...

Alloy: Fe-based,Ni-based,Tungsten ...

Production Capacity: 3000 units/month

Delivery Date: 30 days

Steel material: 38CrMoAla,SACM645,SKD61,GH1...

Nitriding hardness: HV900

Surface Roughness: Ra0.4

For what type plastic machiner: film blowing machine

Raw material: HDPE LDPE film

We offer a wide range of Screw Barrels that are made from superior quality raw material.These are specially design to cater the varied requirements of

Bimetallic Single Screw &Barrel for PE/PP/HDPE/LDPE Blow molding

Product Parameter:

Product	Bimetallic Single Screw &Barrel for PE/PP/HDPE/LDPE Blow molding
Hardness after hardening and tempering	HB260°~320°
Nitrided Hardness	HV950°~1000°
Nitrided Depth	0.50~0.7mm
Nitrided Brittleness	above 2 stage
Surface Roughness	Ra0.4
Screw straightness	0.015mm
Hardess of surface chromium-plating afterNitriding	HV≥950HV
Chromium-plating Depth	0.05~0.10mm
ALLoy Depth	0.8~2.0mm
Alloy hardness	HRC56°~65°
Alloy	iron,nickel,tungsten,molybdenum
Types of screw	Gradual type,mutant type,wave type,barriertype,double screen type,shunt type,separation type,exhaust type,pintype,mixed type,double-head type,three-head type,multi head type etc.

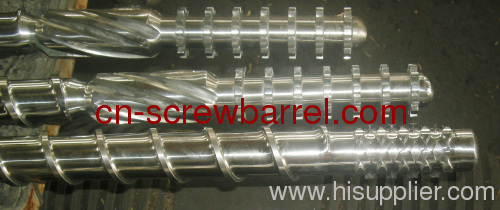

High output, good mixing screw design for film blowing machine

Bimetallic Single Screw &Barrel for PE/PP/HDPE/LDPE Blow molding

We can supply you different kinds of blowing film screw designs.

Bimetallic Single Screw &Barrel for PE/PP/HDPE/LDPE Blow molding

Alloy steel of High quality screw barrel for extruder machine

Features Specifications: screw barrel

Instructions for Screw:

1.We are a professional company specialized in manufacturing many types of screw, the barrel can be applied on all types of injection moulding machine,rubber hot-feeding extruder, rubber cold-feeding extruder, pin barrel cold feed extruder, plastic extruder with different specifications.

2.The models of screw include:

Variable pitch and variable depth, variable pitch and equal depth, variable depth and equal pitch, and equal depth and pitch.

Groove multi-die type, composite type, mixing type and separating type.

3. The material of screw: manufactured with high-quality nitro alloy steel, applying the method of hardening and tempering and nitriding, thus it enjoys the characteristics of long working life, wear resistance, and anti corrosion. Besides, the technique of hard alloy spraying or chrome plating can be used on the working surface of screw, which will make it have better using effectiveness.
